Friday, June 17, 2016

Failed to create journal file provider : failer to write header to /var/log/vmware/journal

Hi All,

You might come across the error message

"Failed to create journal file provider : failer to write header to /var/log/vmware/journal"

in vCenter task when you try to migrate VM or try to put host in maintenance mode.

The issue is cause because ther is not space left in RAMDisk


RAMdisk :



A ramdisk is a pool of memory that can be used to house objects. Its members all reside under a given mount point in the name space and all objects under that mount point are part of the ramdisk. A ramdisk is directly associated to a memory resource pool.  The ramdisk only uses memory to house its members. It can grow up to max (and shrink back down) but only min is guaranteed.



The RAMdisk contains all the folders that are listed within the command vdf-h. Each of the folders resides on a partition on the RAMdisk.  The default reserved size ie min for the default built in RAM disk partitions are below,



sizes in MB:



/root - Min : 32 , Max : 32

/etc  - Min : 28 , Max : 28

/opt  - Min : 0 ,  Max : 32

/Var  - Min : 5 ,  Max : 48

/tmp  - Min : 28 , Max : 192 --> ESXi 4.x

/tmp  - Min : 28 , Max : 200 --> ESXi 5.0U1

/tmp  - Min : 28 , Max : 256 --> ESXi 6.0


The main reason why the RAMDisk is getting filled is inappropriate log file path given i.e. /scratch log which is located at
Select Host - > Configuration-> Advanced Settings -> Syslog->syslog.global.logdir (here the path should be /scratch/log but due to typo or unknown reason the path got changed to /scratch log (space was given).

Resolution -

1. We need to correct the path to
Select Host - > Configuration-> Advanced Settings -> Syslog->syslog.global.logdir ->/scratch/log
2. Login direc console
Vi /etc/vmsyslog.conf

locate /scratch log and change to /scratch/log

save the changes and quit.

3. Cleanup
SSH to the host or in the direct console

cd /
rm -rf /scratch\ log
services.sh restart


Done with that we have changed the wrong /scratch log to correct one i.e. /scratch/log.

Now you will not see the error message.

let me know your comments and if issue is fixed.



Thursday, July 16, 2015

Cannot Execute upgrade script on host- Error while upgrading esxi 5.1 to esxi 5.5

I was doing my ESXi upgrade from 5.1 to ESXi 5.5 from update manager. But I got struck with the error message as
"Cannot execute upgrade script on the host"



Steps I tried
Rebooted the host and again tried remediating the host from update manager, but didn't worked.

Solution

Finally it solved for me. I executed below given commands.Removed the FDM agent on the host and rebooted.

cp /opt/vmware/uninstallers/VMware-fdm-uninstall.sh /tmp
chmod +x /tmp/VMware-fdm-uninstall.sh
/tmp/VMware-fdm-uninstall.sh


Reboot the host now and again try remediating the host from update manager. These time it worked.

Removing the FDM agent from the host manually fixes the issue.



Friday, May 4, 2012

Error 1310: C:\Program Files\Microsoft Office\Office12\InfoPath SDK\WIZARD.hta

Hi All,

You might have came across the error as

"Error 1310: C:\Program Files\Microsoft Office\Office12\InfoPath SDK\WIZARD.hta"







while installing Microsoft Visual Studio 2008 ,

I faced the same issue and did lot of googling but didnt find any solution for it, Finally i found the solution with my research , it so simple

its System Antivirus :P

Yes i just disabled local system Antivirus and re-run the setup this time i didnt find any error and Visual Studio 2008 installation was successful. :)


Regards
Raju Gunnal

Friday, April 27, 2012

Tupperware boxes for Sale

Hi All,
Tupperware is one of the largest manufactures of high quality, innovative and branded kitchen storage, food products, canisters, containers, freezer bowls, and many more household daily used products

Tupperware products on discount in Hyderabad. Find Tupperware products on discount from a wide range of Home - Kitchen Appliances and many more...
Tupperware This week (23rd Apr to 29th Apr) offers
Additional 10% discount on Offer Price











Please find attachment for more information on Product and Prices Please contact me on below

 given no. for purchasing.

Download the more product images and price details from below link.



http://tech2solution.com/index.php?topic=35.msg108#new

Contact: SM
Email: tupperware.sales3@gmail.com
Contact Num: +91-9985068428

Wednesday, October 26, 2011

The Remote Session was disconnected because there is no Terminal Server License.

Hi All,

You might have came across below given error , when you are connecting to Citrix Presentation Server while launching application.







The issue is with the existing Termincal Server license stored in the user’s machine Registry file.

Just go to the below location and Remove the Registry file and reboot the machine , launch the Citrix Presentation server url and launch the application. Will work. This will regenerate the Terminal Server license keys in the Registry and allow connections.

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\MSLicensing

Now you try to connect/ Launch the Application in Citrix Presentation server , it will connect.

Thursday, September 1, 2011

Upgrading vSphere 4.0 to vSphere 5.0

Hi All,

In this Blog am showing you how to upgrade vSphere 4.0 to vSphere 5.0,

here am installing vSphere 5.0 on the already installed vSphere 4.0 , vSphere 4.0 is installed on VMware Workstation 7

so lets starts.

I have started the already installed vSphere 4.0

1. In the Below screen you can see already installed vSphere 4.0 , here we are going to upgrade it to vSphere 5.0






2. Select the vSphere 4.0 settings and select CD and show the ISO of vSphere 5.0 which you have downloaded.




3. Now, restart the vSphere 4.0




4. Select the ESC button to get the boot device screen and select CD Rom and enter




5. Select ESXi 5.0 Installer.





6. Now its booting with ESXi 5.0 CD




7. Loading the Screen




8. Here you can see the Welcome Screen for vSphere 5.0 , Click on Enter to continue



9. Select F11 to accept VMware EULA




10. Installation is scanning the available Devices




11. In The below screen it shows the Storage devices, where you want to install, here I have local datastore of 20 GB, selecting the same and click on Enter to continue




12. Installation is gathering the selected device information




13. In the below screen select the first option “Migrate ESX, preserve VMFS datastore” if you are upgrading vSphere 4.0 to vSphere 5.0

And Click Enter to continue




14. Scanning the additional information about the Device




15. The installation is asking for confirmation about Migration , enter F11 to migrate




16. In the below screen vSphere 5.0 migration process is started




17. See the below screen migration process is still going on




18. In the below screen , we are getting Alert to set the VPXA password , upon reboot we can set the password and Enter to continue




19. Installation again contnues




20. Installation is Completed Successfully , here am using trial version of vSphere 5.0 after the trial version you can apply the license for vSphere 5.0




21. Installation done, rebooting the vSphere 5.0





22. Installation successful , now you can login in vsphere 5.0




23. Now login to vsphere 5.0 from vsphere client




24. VMware infrastructure loaded successfully, showing the Trial period remaining.




25. Here you can see my Old VM Inventory present when it was in vsphere 4.0




26. Powering on VM to check whether its working fine or not




27. VM is booting successfully





28. Logging into VM




29. Successfully logged in VM.





VMware vSphere 4.0 upgradation done successfully to vSphere 5.0 without any issues.

Please comment here if you face any issues in upgrading. :)

Saturday, February 12, 2011

Earn Money From Twitter

Well, Twitter is known as a social networking tool where the members can post a “tweet” with maximum of 140 characters in it. For example see the tweets from my 3 Twitter accounts as given below:

1.@rajugunnal
Dont Miss Frank -new Variety/Talk TV show with celebrity guests,comedy & music.Follow@frankdangelo23 & win $5,000

2.@rajugvcp
PureAndHealthy is giving $10 discounts for posting a twitter / FB message! Get yours by visiting www.pureandhealthy

3.@tech2solution
Fun Kids Soccer Where Soccer Begins. Non-competitive soccer classes for kids age 2.5 years old and up. - ad

I have 3 Twitter accounts currently and I am going to increase them to 100s(if I am able to handle them).

When I already have these accounts, then what can be so special that I am willing to have more of such interesting Twitter account?

Well, there are many ways to earn from Twitter marketing. Many sites pay us for posting advertisements which are also known as sponsored tweets. When someone clicks on those tweets we get paid. Different websites offer different ways of earning from the tweets.

1. MyLikes

MyLikes.com is a new advertising platform that connects advertisers and Twitter users. You can make money via tweeting as well as posting links with your MyLikes code on your own website, blog, or online page. They Pay via PayPal weekly, there are many sponsored campaigns to choose from, and you can advertise your own links via MyLikes as well. ponsored Tweets requires a minimum of $ 50 before the user can cash. MyLikes require only a minimum balance $ 2.



2. RevTwt

There are many other websites which pay you by pay per click methods when someone clicks on the tweets you post on your Twitter account. This means that you sign up to the websites and give them permission to select the ads for tweets and post them on your Twitter accounts. When someone clicks on it, you get paid. Generally, different websites pay different amount of money for each click. Revtwt pays you 5 to 20 cents per click. Payment is through Paypal when you reach $20 and through check when you reach $100.

Click Below to Login





3.SponsoredTweets

SponsoredTweets.com is a Twitter advertising platform, owned by IZEA, that connects advertisers with Tweeters. Advertisers can create sponsored conversations on Twitter. Tweeters can earn money for spreading the word. Think of it as the Pay Per Tweet version of Pay Per Post.
You only need to allow SponsoredTweets access to twitter account to it can calculate the value of a tweet or click on each click.

Click Below to Login
SponsoredTweets referral badge

4.Magpie
Magpie is also a good site to earn from twitter, only you need to tweet ads, Only bad thing would be that if the tweets posted by Magpie would be looking like Spam you are risking your account because your followers may stop following you and start ignoring you. Though you have the option to limit the number of tweets you would allow them to make and also have a disclaimer before or after the tweet message in order to make your followers know that these are paid tweets.Minimum Cashout Amount is 50$.

Click Below to Login
Launch viral advertising campaigns on Twitter with Magpie!

5.Twittad
Twittad is also site where you can tweets their ads and earn money from twitter account, Minimum withdrawal amount is 30$.

Click Below to login





This above given are the beast sites from where we can earn money from twitter account, My favorite site in above is MyLikes
There are also some other sites similar, but not much popular.
1.BeTweeted
2.Twivert

All the best goahead and Earn online.

Regards
Raju Gunnal

Wednesday, February 2, 2011

Installing HP Device Manager for Controlling HP ThinClient





Installation and Requirement
HP Device Manager Installation



HP Device Manager

HP Device Manager is a server-based application that provides sophisticated centralized administration capabilities for Thin Client devices running HP software. Features of HP Device Manager include:
 Centralized management of software configuration and upgrades.
 A central server-based database.
 The ability to easily create, store and update tasks.
 The ability to access any file or the system registry in thin client devices.
 XML-based task file.
 Design tool for administrator to create tasks.
 User-friendly graphical user interface.
 Easy and powerfull repository management.
 Support for WAN environment.
 Windows CE device management.
 Linux device management.
 Easy to change Enhanced Write Filter setting for XPe Agent.
 The ability to adjust the response time.
 Communicate with Data Encryption and Data Compression between HP Management Server and HP Management Gateway.
 Easy to set the work mode of Agent.

Overview
HP Device Manager is structured as a Console-Server-Gateway system.

HP Management
The HP Management Console is the user interface of HP Device Manager. Several HP Management Consoles can interact with an HP Management Server. The console allows system administrators to view details for each controlled device, organize device trees, create and maintain remote job definitions, and monitor tasks sent out to devices.

HP Management Server
The HP Management Server controls agents through the HP Management Gateway. Tasks stored asTask Templates on the server, can be sent to each agent through each agent’s respective gateway to perform commands as required.
HP Management Gateway
The HP Management Gateway servers as the link between devices and the HP Management Server. Device register with the gateway when they are started. The machine installed with the HP Management Gateway also normally contains the PXE Server installed by HP Device Manager.
Device Agent
The HP Management Agent is a software component installed on thin client devices so that HP Device Manager can interact with them. Agents are embedded into each HP operating system to enable Device Manager to manage devices out-of-the-box. Agents get tasks commands, execute the commands and report on their status.

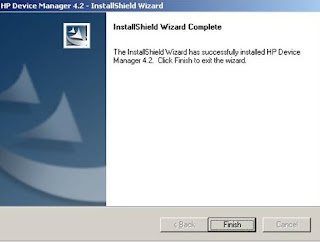

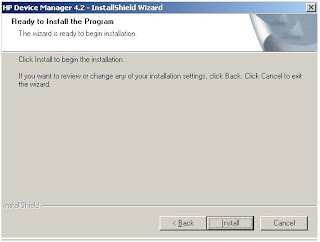

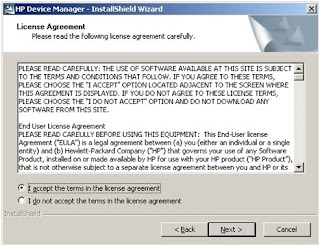

Installing HP Device Manager
Components
HP Device Manager consists of four modules:
 Management Console
The graphical application used by administrators to access the management system.
 Management Server
The central server which consolidates and controls all management activities.
 Management Gateway
The gateway which serves as the link between Agents and the Management Server.
 Management Agent

Software installed on the client to enable device management

The Management Console, Management Server and Management Gateway may be installed on
Same machine, or on different machines separately.

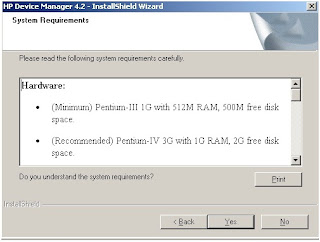

System Requirements

Management Console

The Management Console can be installed on any number of machines. The following environment is required:
 Operating System
Windows 2000 Professional (SP4)
Windows 2000 Server (SP4)
Windows XP Professional (SP2)
Windows Vista
Windows 2003 Server
Windows Server 2008

 Third-party Software
Java Runtime : SUN java Runtime Environment Version 6.

 Hardware
Pentium-lll or greater
512 MB RAM
256 MB free disk space

Management Server
The Management Server should be installed on a single machine. The following environment is required
 Operating System
Windows 2000 Server (SP4)
Windows 2003 Server
Windows Server 2008

 Third-party Software
Java Runtime : SUN Java Runtime Environment Version 6

DBMS- any of the following are supported : Microsoft SQL Server 2000 or 2005, Microsoft SQL Server 2008; PostgreSQL

 Hardware
Pentium lll or greater
512 MB RAM
512 MB free disk space

Management Gateway

The Management Gateway may be installed on multiple machines. However, only on Gateway should be present on a subnet. The following environment is required:

 Operating System
Windows 2000 Professional (SP4)
Windows 2000 Server (SP4)
Windows 2003 Server
Windows Server 2008

 Hardware
Pentium-lll or greater
512 MB RAM
512 MB free disk space

Management Agent

The Management Agent should be installed on each thin-client device that will be managed by the system. The following environment is required:

 Operating System
HP XPe
HP CE 6
HP Linux Debain
HP ThinConnect
HP ThinPro
HP ThinPro GT
NeoLinux 4.0.1
NeoLinux 4.0.1
NeoLinux 3
Neoware XP embedded 1.4.2 or later
Neoware CE 8.1
Maxspeed XPe
Maxspeed CE

 Hardware
Thin-Client device supporting one of the operating system listed above with 2 MB free disk space
Additional Requirements

To support communication between the different components of the system the network must provide open access on certain ports. In addition to transfer large files between components, FTP server must be accessible by the system.

 Recommended FTP Servers-Third-Party Software
Filezilla Server
Microsoft Internet Information Server (IIS)
Rhinosoft Serv-U FTP Server 4
SCO Unix OpenServer FTP Server

 Network Requirements

The network should not contain any other running PXE servers. The network should permit free communication on ports used by HP Device Manger. HP Device Manager only supports IPv4 networks

A number of UDP and TCP ports are required for client/server communication. Given below are the standard ports required,

If we are using a Server behind a firewall, please add ports 1099 and 40002 to the exception ports in the firewall settings.

Standard Ports Required
Port Protocol Purpose
67 & 68 UDP PXE-Bootstrap
69 UDP TFTP (Trivial File Transfer Protocol)
4011 UDP DHCP Proxy Server (This is an alternative to ports 67 & 68 if those
Ports are not available)
20 & 21 TCP FTP (Used for the Repository)
5900 TCP VNC Server
5500 TCP VNC Viewer in Listen Mode





Custom HP Device Manager Ports Required

Receiver Port Sender Receiver Protocol Purpose
1099 Console Server TCP Console queries the RMI Registry.
40000 Server/Agent Gateway UDP Server/Agent polls Gateway.
40001 Gateway Agent TCP Gateway sends task to Agent
40002 Console Server TCP Console calls the remote objects on
Server by RMI
40003 Server/Agent Gateway TCP Server sends task to Gateway. Agent
Sends report to Gateway.
40005 Gateway Server TCP Gateway sends report to Server
40006 Server PostgreSQL TCP The default database PostgreSQL list
Listening port.
40008 Gateway Gateway TCP Gateway notifies Gateway Controller
Controller running in the same subnet



Installation Procedure

1. Run the Device Manger setup file. This installation’s introductory dialog box will appear.



2. Select the I Accept the terms in the license agreement and click on next




3. Here shows the location to unpack the setup file.

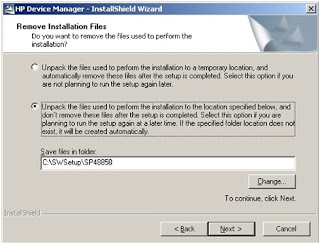

4. Select the below given default location and click on Next




5. The unpack is started and it will soon start the installation.




6. See below HP Device Manager installation starts.




7. Click on Next




8. Select I accept the terms of the license agreement and click on next



9. Check the Hardware requirement in below table, if your not meeting the hardware requirement install it in the good hardware.



10. Select the Custom for installation.



11. Check the box for HPDM Console- if your installing and want to manage HPDM console
HPDM Server - if you want to install HPDM Server in the Same machine
HPDM Gateway-if you want to install Gateway server also in the same machine.





12. Now after select the above option click on Next and install.



13. The Installation will proceeds.

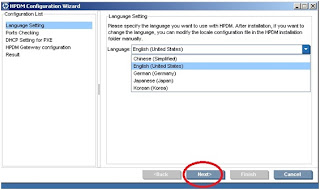

14. Select the Language type you want to install and click on Next



15. You can test the ports available by clicking on Check button, if you got any error than you need to check the require port is available or using by any other application. And click on Next



16. Select the first DHCP server if your DHCP server is not located on this machine.
Select the second DHCP server if your DHCP is located on this machine only.




17. See the below given details if you want to edit any changes you can do it, but recommended to put it default only and click on Next




18. Now Click on Execute



19. Click on finish to this installation and start the SQL installation.

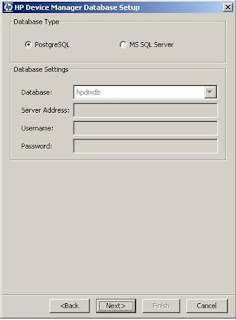

20. Select the Database type you want to install.




21. Select the type of SQL you want to install.

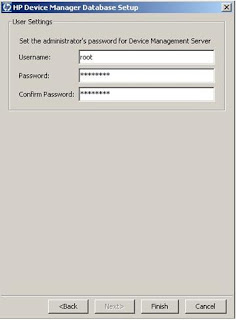

22. Give the Root password (Important : Please do remember this password)





23. The Administrative settings finished.

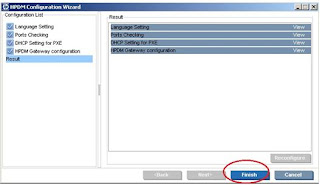

24. Click on Finish



25. HP Device Manager Icon will come on the desktop. Click on it.




26. Enter the root and root password to login into the HP Device Management Console.




27. The HP Device Manager Console Looks like this.




Configuring DHCP Boot Options



Now we will configure DHCP boot options , it is required to allow the required ports

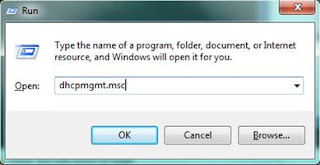

1. Login into the DHCP server with Administrative Previleges.



2. Right Click on the DHCP server and select the “Set Predefined Options” from the menu

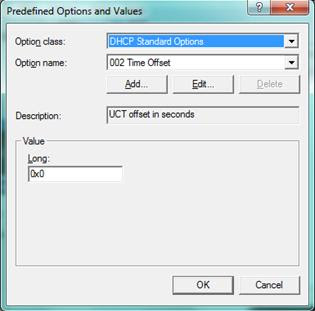

3. Click on “ADD” button on the Predefined options and values window




4. You will get the following window.




5. Here I have provided the following example for option ID 161 :




Click on OK

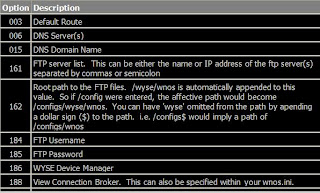

6. Repeat the Steps from 3rd to 5th for rest of the DHCP Options i.e. -161, 162 ,184, 185, 186 and 188 on your DHCP Server
a) In the Name field mention the Brief description of the new Option Value.
b) In Data Type change the value from ‘Byte’ to ‘Sting’
c) Enter the DHCP Option in the field i.e. (161)
d) Provide the brief description in the ‘Description’ field as its help you to refer in future, for that this value added.




Creating the DHCP Scope for ThinClient

We have to create the DHCP Scope and assign the relevant values to it:
1.From the DHCP snap-in , right click on the Hostname of DHCP server and select ‘New Scope’.

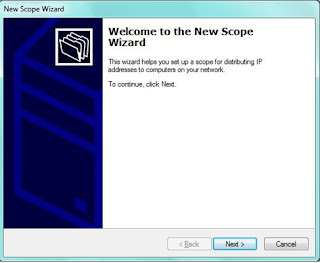

2. You will see the wizard for creating New Scope ,Click on Next

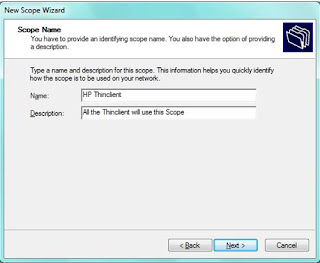

3. Provide a name and description for your new scope and click on Next



4. Now provide the relevant IP block and subnet information for the scope and click on Next to proceed

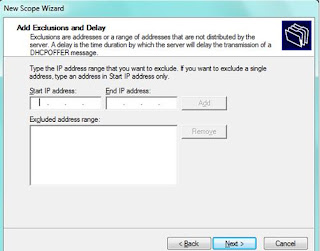

5. Enter if any Exclusions for the Scope and click on Next




6. Enter the Desired lease time and click on ‘Next’



7. Select “Yes I want to configure these options now” value and click on Next



8. Add your default Gateway and click on Next

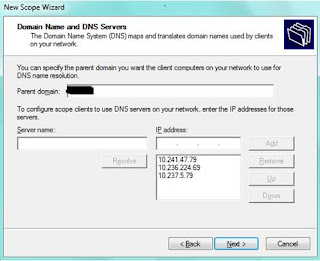

9. Provide you DNS name and click on Next



10. Provide the WINS server and Click ‘Next’



11. Select ‘Yes I want to activate this scope now’ option , click on Next and Finish
